Instant
123-SG-900
- Plug the load in.
- Switch it on.
The solar canopy is fixed to the trailer, so there is nothing to unfold or aim.
Technology and architecture
More than a solar generator.
Solar battery generator technology, coordinated as one system: renewable generation, stored energy, automated source management, backup generation, and a mobile field platform.
System architecture
Power sources that work as one.
Generation, storage, intelligent controls, backup power, and load delivery are engineered as one coordinated system.
- 01
Generate
The deployable solar array captures the primary energy input.
- 02
Store
The 123eNRG power cell retains energy for controlled use.
- 03
Orchestrate
Intelligent controls coordinate sources, storage, and load.
- 04
Back up
Diesel generation engages automatically when required.
- 05
Deliver
Stable power reaches the connected application.
01 · Generation
The array is where the energy comes from.

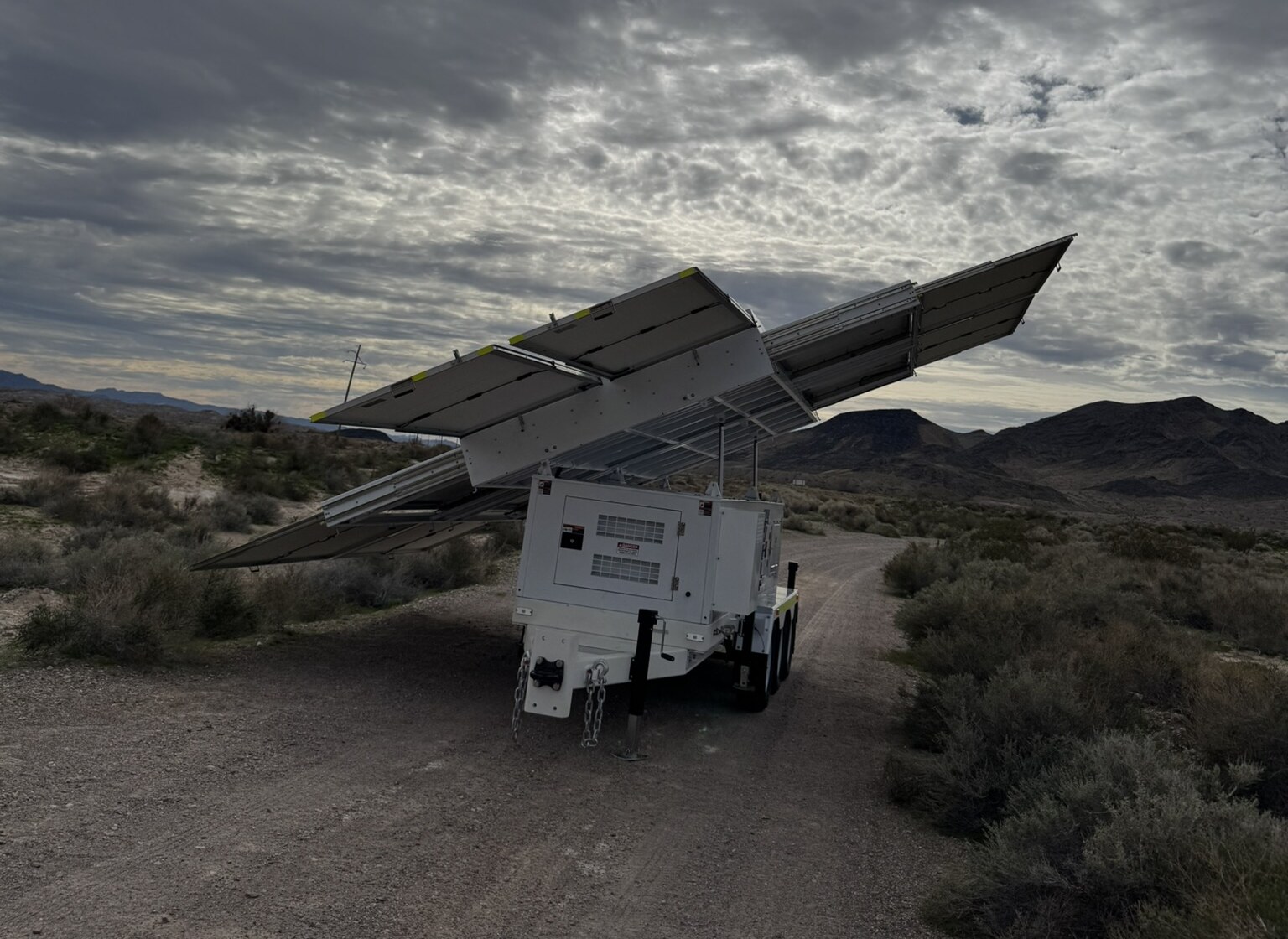

Everything downstream — the bank, the inverter, the controls — exists to hold and shape what the panels collect. The array folds within the trailer envelope for transport, raises and tilts on site, and stows again before the unit moves.
- Deployed, not fixed. The panels tilt out past the width of the trailer and are angled to the site, then folded back inside its envelope for tow.
- Nameplate power, published per configuration. Each configuration's array rated power and panel count are recorded with its specification, not quoted from a range.
- Charging is the array's whole job. It feeds the battery bank; the inverter, not the array, sets what the system can deliver at any instant.
- No engine required to collect it. A solar-only platform runs on this section alone, and on a Tri-Brid™ the array keeps working whether the engine is running or not.
Published array figures
| Configuration | Array rated power | Panels | Estimated daily production |
|---|---|---|---|
| 123-SG-1A10 | 1.47 kW | 3 | 6.3 kWh/day |
| 123-SG-4D41 | 4.6 kW | 10 | 19.8 kWh/day |
| 123-SG-4S82 | 4.6 kW | 10 | 19.8 kWh/day |
| 123-SG-4S82-40 | 4.6 kW | 10 | 19.8 kWh/day |
| 123-SG-7D63 | 7.36 kW | 16 | 31.6 kWh/day |
| 123-SG-7S42 | 7.36 kW | 16 | 31.6 kWh/day |
| 123-SG-7S82 | 7.36 kW | 16 | 31.6 kWh/day |
| 123-SG-7S82-40 | 7.36 kW | 16 | 31.6 kWh/day |
| 123-SG-900A10 | 0.98 kW | 2 | 4.2 kWh/day |
| 123-STG-42S51 | 4.6 kW | 10 | 19.8 kWh/day |
| 123-STG-71S62 | 7.36 kW | 16 | 31.6 kWh/day |
| 123-STG-72D62 | 7.36 kW | 16 | 31.6 kWh/day |
02 · Deployment
Tow in. Power on in minutes.
There is nothing to assemble and no crane to hire. The battery bank rides on board, so the load has power the moment the system is switched on, and the array opens to start charging in minutes.
Under 5 minutes
10 panels · SG-4 and STG-4
- Pull the solar drawers out of the cabinet.
- Lock them into place.
- Tilt the panels from the control panel. The integrated cabinet hydraulics do the lifting.
The load has instant power from the on-board bank while the array deploys.
Under 5 minutes
16 panels · SG-7 and STG-7
- Pull the solar drawers out of the cabinet.
- Lock them into place.
- Tilt the panels from the control panel. The integrated cabinet hydraulics do the lifting.
The load has instant power from the on-board bank while the array deploys.
123-SG-7D63 123-SG-7S42 123-SG-7S82 123-SG-7S82-40 123-STG-71S62 123-STG-72D62
The 123eSolar difference
Designed as a complete operating system.
The value is not any one component. It is how the sources, controls, storage, enclosure, and service architecture work together.
Deployable generation
Solar capacity is packaged for transport and positioned for field deployment.
123eNRG storage
Stored energy supports loads without unnecessary backup-generator runtime.
Coordinated controls
The control layer manages charging, storage, backup, and connected demand.
Serviceable platform
Protected components remain accessible for inspection and maintenance.
See the architecture in the right platform.
Compare verified configurations or start with your operating requirement.
