Power systems

Three ways to power a site.

Mobile solar generator trailers, Solar Tri-Brid™ generators and modular systems. Each card leads with what sets that machine apart: its array, its storage and, where it carries one, its diesel.

Solar generators

Sun and battery, no engine. Silent and emission-free; below its break-even load each one runs on the sun indefinitely.

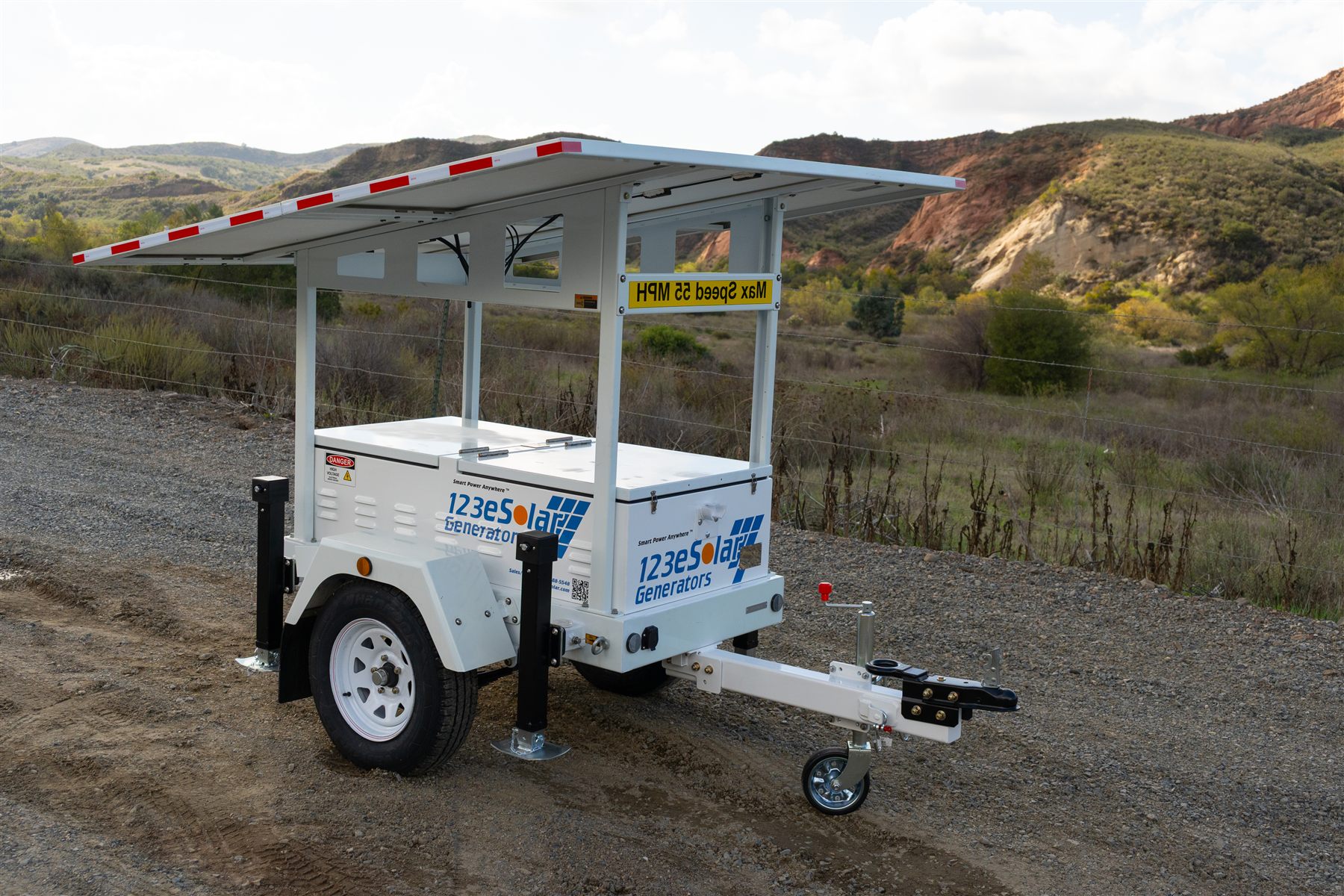

123-SG-900A10 — A fixed solar canopy over a compact single-axle trailer: 48 V DC power the moment it is parked.

123-SG-900A10

Solar Generator

A fixed two-panel canopy over 9.6 kWh: 48 V DC power with nothing to unfold, and 27 hours at 0.18 kW with no sun.

DC output
2.88 kW at 48 V
Solar array
0.98 kW · 2 panels
Stored energy
9.6 kWh gel
Runs on sun alone below
0.18 kW
View system
123-SG-1A10 — Three panels tilted to the sun on a single-axle trailer: 48 V DC power with no engine to fuel.

123-SG-1A10

Solar Generator

48 V DC straight to the load from three panels and 9.6 kWh, on a single-axle trailer with no inverter and no engine.

DC output
2.88 kW at 48 V
Solar array
1.47 kW · 3 panels
Stored energy
9.6 kWh gel
Runs on sun alone below
0.26 kW
View system
123-SG-4D41 — The enclosure up close beneath the folded array: the inverter and the 21.2 kWh bank ride inside.

123-SG-4D41

Solar Generator

Ten panels over 21.2 kWh of lithium on two axles: below 0.82 kW, the sun carries the load indefinitely.

Continuous output
10 kW
Solar array
4.6 kW · 10 panels
Stored energy
21.2 kWh lithium
Runs on sun alone below
0.82 kW
View system
123-SG-4S82 — Ten panels stowed on a tandem-axle trailer, ready to tow to a site with no grid.

123-SG-4S82

Solar Generator

Silent 12 kW from ten panels and 30.4 kWh of lithium on two axles: 7.33 hours at 2 kW with no sun.

Continuous output
12 kW
Solar array
4.6 kW · 10 panels
Stored energy
30.4 kWh lithium
Runs on sun alone below
0.82 kW
View system

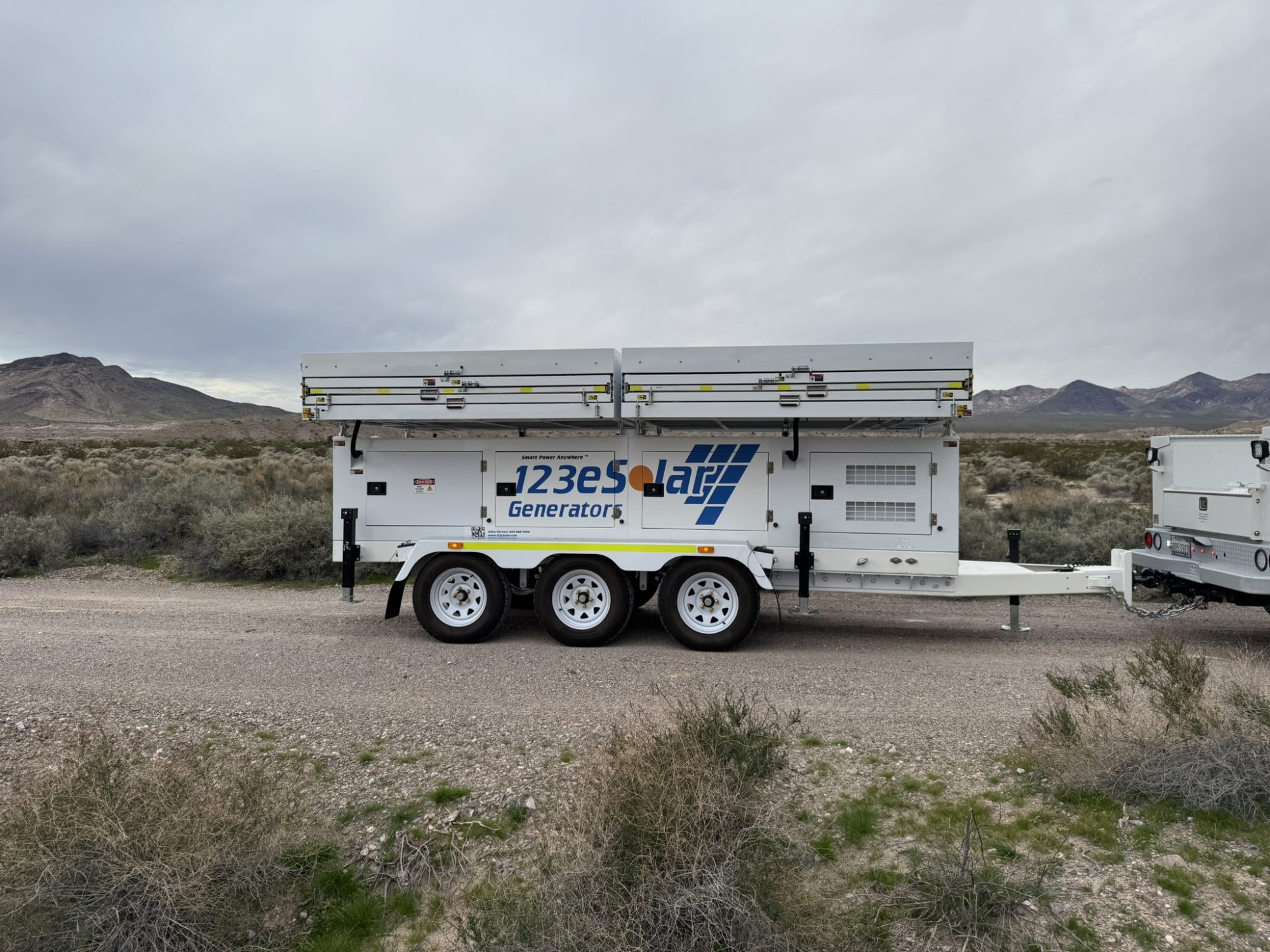

123-SG-7S42 — Sixteen panels folded into a triple-axle trailer, arriving on a desert site with no grid.

123-SG-7S42

Solar Generator

Sixteen panels over a lean 15.2 kWh bank, for work done in daylight: 31.6 kWh of sun on an average day.

Continuous output
12 kW
Solar array
7.36 kW · 16 panels
Stored energy
15.2 kWh lithium
Runs on sun alone below
1.32 kW
View system

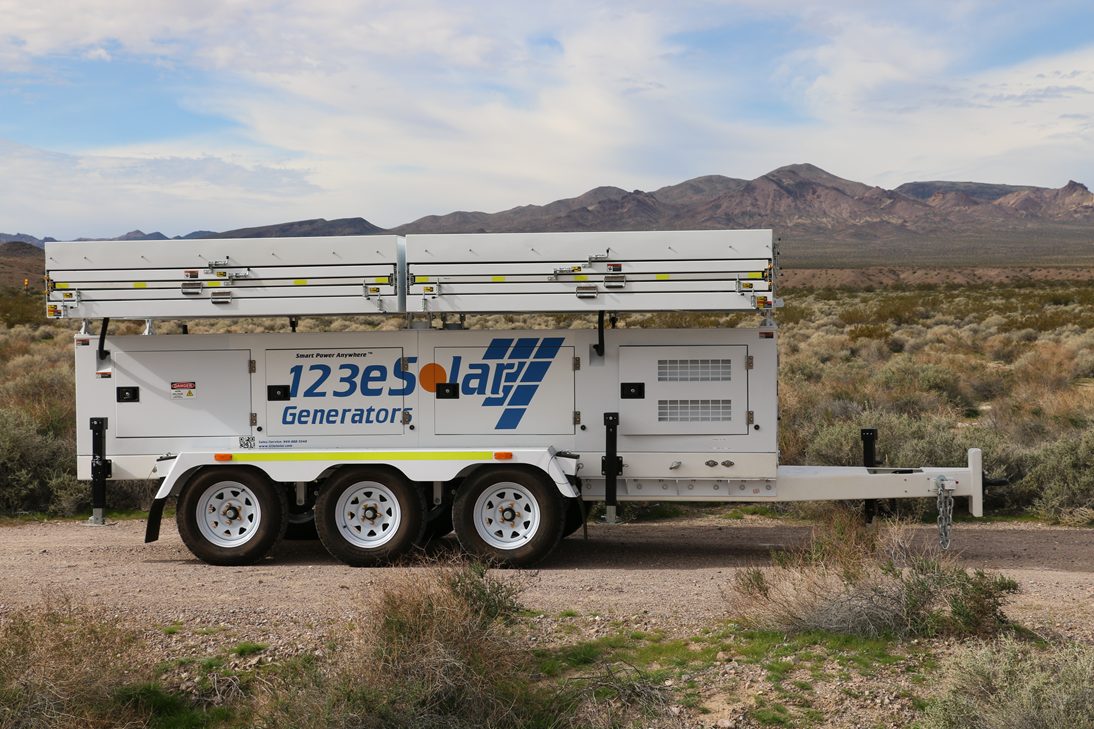

123-SG-7S82 — Side profile, stowed: sixteen panels and a 30.4 kWh lithium bank in one triple-axle trailer.

123-SG-7S82

Solar Generator

Sixteen panels and 30.4 kWh of lithium carry 1.32 kW around the clock on sun alone, with no engine to fuel.

Continuous output
12 kW
Solar array
7.36 kW · 16 panels
Stored energy
30.4 kWh lithium
Runs on sun alone below
1.32 kW
View system

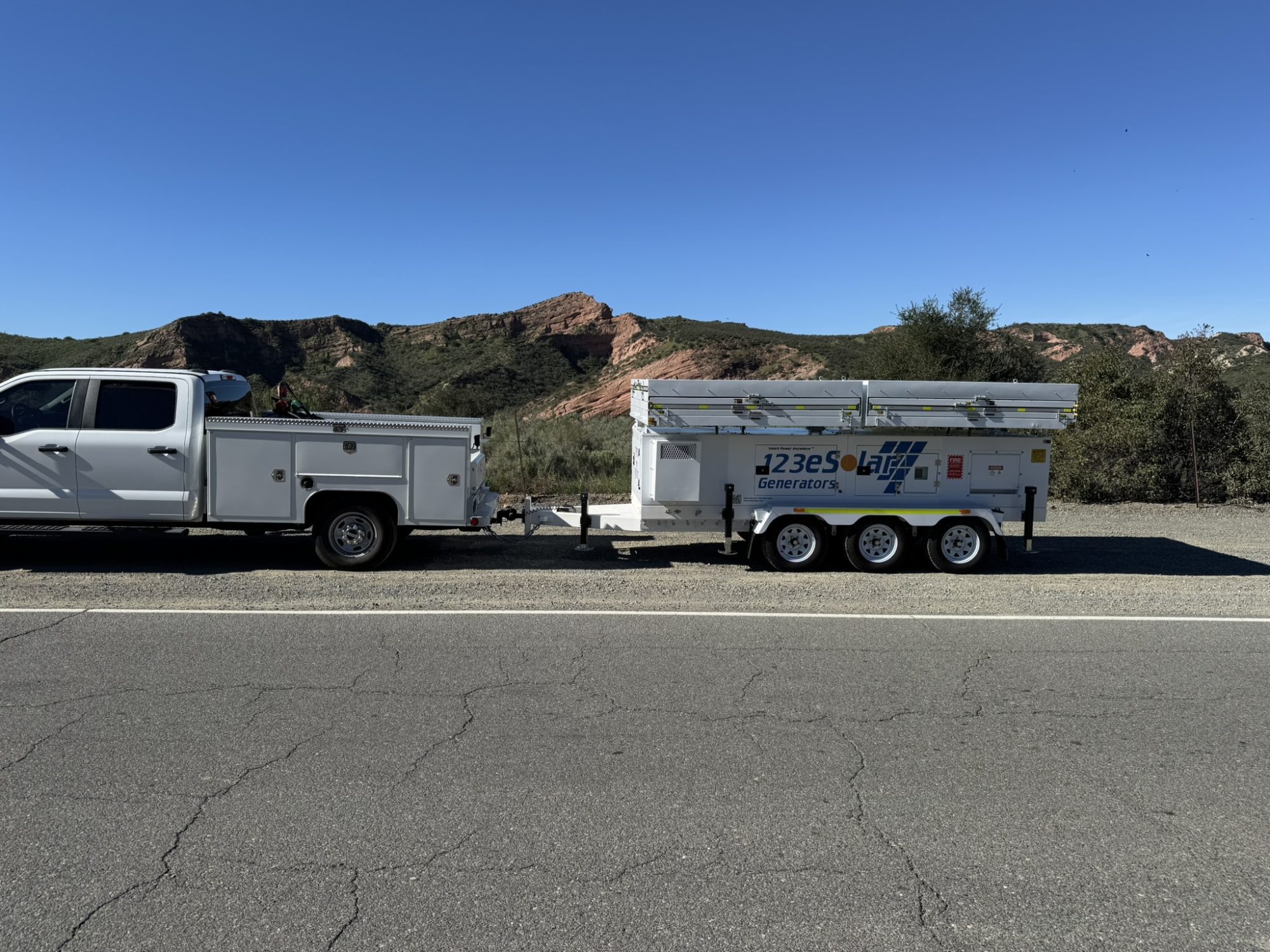

123-SG-7D63 — The 123-SG-7D63 under tow on the highway shoulder: 16 panels folded flat over the enclosure, three axles beneath it and the jacks up for the road.

123-SG-7D63

Solar Generator

16 panels and 31.8 kWh of lithium on three axles: 18 kW off-grid, and below 1.32 kW the sun carries the site indefinitely.

Continuous output
18 kW
Solar array
7.36 kW · 16 panels
Stored energy
31.8 kWh lithium
Runs on sun alone below
1.32 kW
View system

Solar Tri-Brid™ generators

Solar, battery and a diesel on one trailer. Sun first, battery second, and the engine only when both run short.

123-STG-71S62 — Sixteen panels raised overhead, jacks down and running on a desert site.

123-STG-71S62

Solar Tri-Brid™ Generator

The long-endurance Tri-Brid™: sixteen panels, a 120-gallon tank and 12 days between refuels at 6 kW.

Continuous output
9 kW
Diesel on board
9.0 kWe · 120 gal
Solar array
7.36 kW · 16 panels
Between refuels at 6 kW
12 days
View system

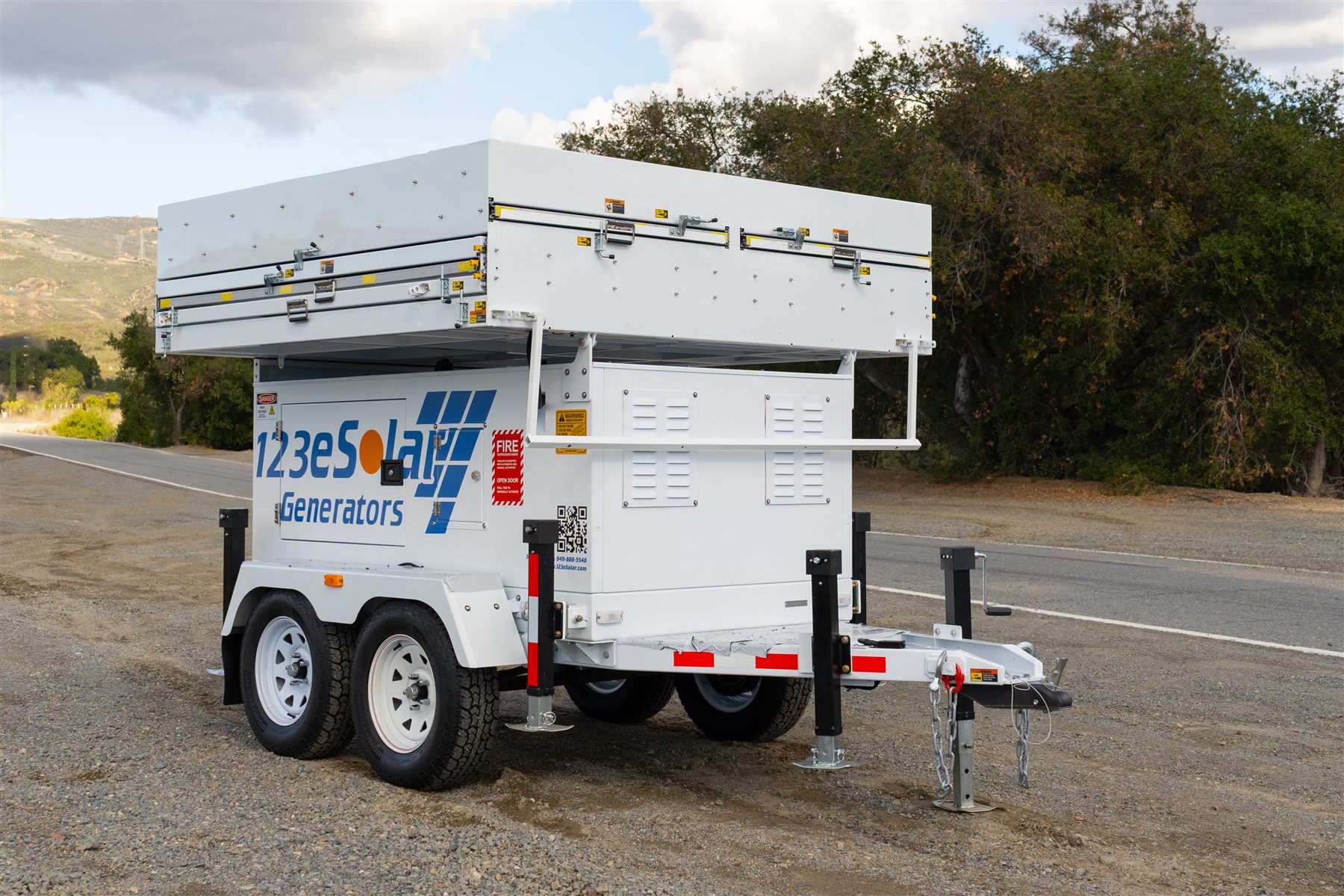

123-STG-42S51 — Solar, lithium storage and a 10.8 kW diesel on one trailer, stowed for the road.

123-STG-42S51

Solar Tri-Brid™ Generator

Solar, 19 kWh of lithium and a 10.8 kW diesel in one trailer: a complete 10 kW power plant in a single tow.

Continuous output
10 kW
Diesel on board
10.8 kWe · 89 gal
Solar array
4.6 kW · 10 panels
Between refuels at 5 kW
7.8 days
View system
123-STG-72D62 — The Tri-Brid™ stowed: solar, lithium storage and a 10.8 kW diesel on one trailer.

123-STG-72D62

Solar Tri-Brid™ Generator

The deepest Tri-Brid™ bank, 31.8 kWh, behind sixteen panels: 9.4 days between refuels at 6 kW.

Continuous output
10.8 kW
Diesel on board
10.8 kWe · 120 gal
Solar array
7.36 kW · 16 panels
Between refuels at 6 kW
9.4 days
View system

Modular systems

A solar trailer with a standalone diesel towed alongside: each unit serviced on its own, and the solar side free to work alone.

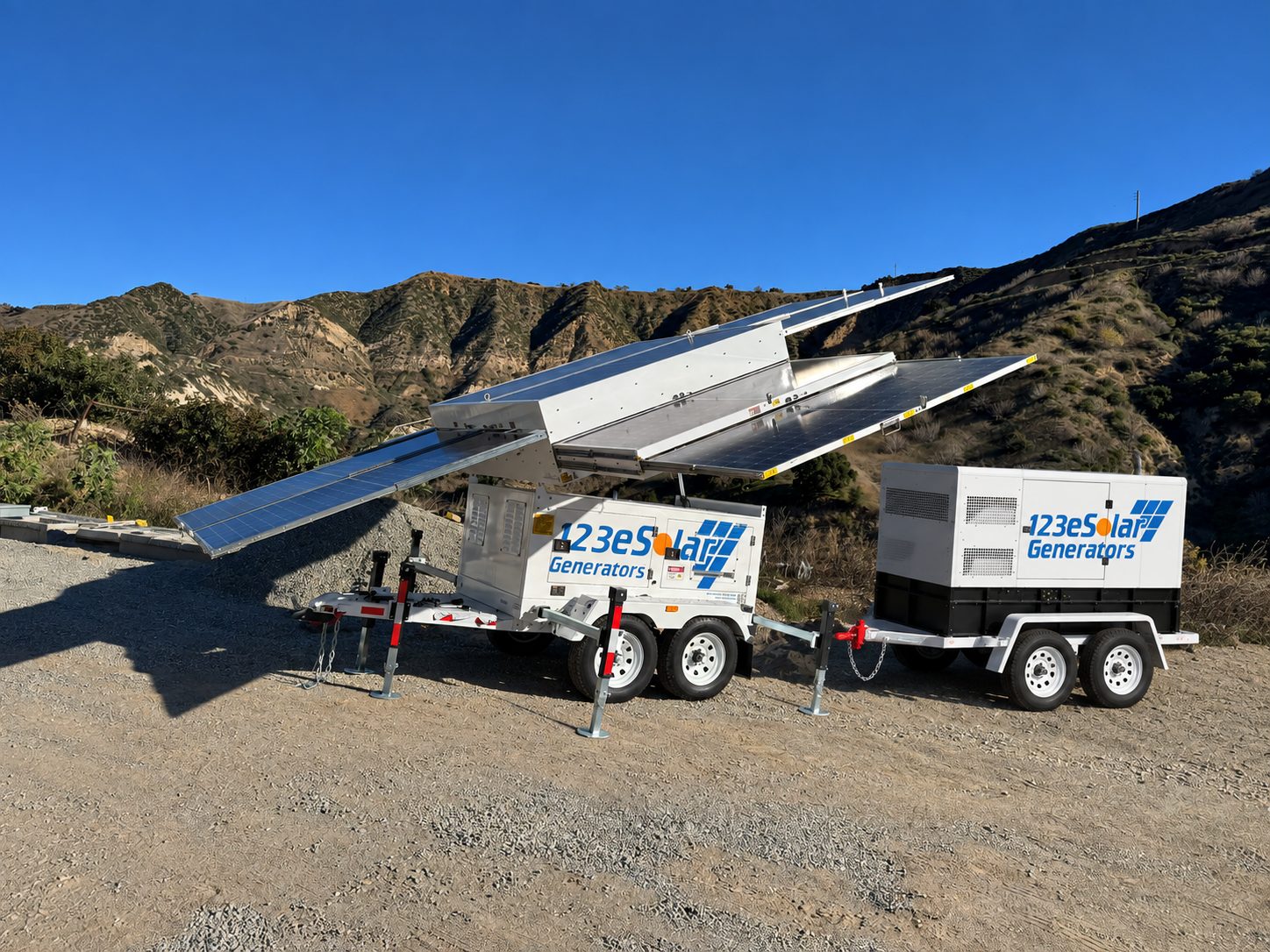

123-SG-4S82-40 — Two units, one system: ten panels open beside the standalone 40 kW diesel.

123-SG-4S82-40

Solar Generator, modular pairing

The ten-panel solar trailer with a standalone 40 kW diesel beside it: 14.4 days between refuels at 6 kW.

Continuous output
12 kW
Standalone diesel
40 kW · 140 gal
Solar array
4.6 kW · 10 panels
Between refuels at 6 kW
14.4 days
View system
123-SG-7S82-40 — Two units, one system: sixteen panels opened wide beside the standalone 40 kW diesel.

123-SG-7S82-40

Solar Generator, modular pairing

The sixteen-panel solar trailer with a standalone 40 kW diesel beside it: 15.9 days between refuels at 6 kW.

Continuous output
12 kW
Standalone diesel
40 kW · 140 gal
Solar array
7.36 kW · 16 panels
Between refuels at 6 kW
15.9 days
View system

Every system above is one machine, towable behind a three-quarter-ton pickup. For loads past what one platform carries, see what we build above the line
